CybeRay

the era of“precise tumor treatment”approaching

CybeRay came into being

Stereotactic radiotherapy is widely recognized in clinic for its excellent local tumor control rate.
It is the goal for the development of stereotactic radiotherapy that how to mitigate side effects and improve clinical safety while achieving high dose.

Ultra high-precision structural design, 3D realtime image guide, and intelligent multi-arc stereotactic focused irradiation.
All together bring about the new generation of professional stereotactic radiotherapy solution-CybeRay

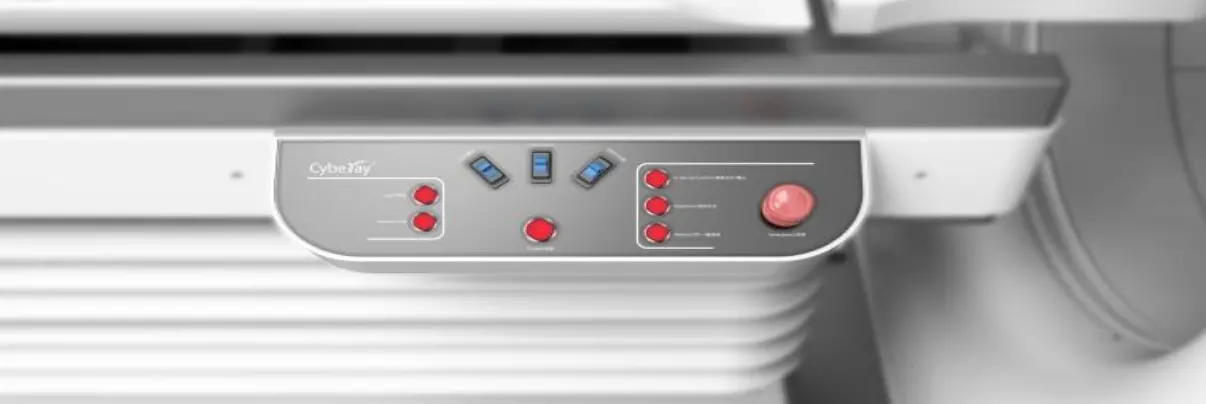

More precise ultra-high-precision cyclic structure design

• Precise-exclusively designed for stereotactic radiotherapy
• Mechanical-isocentre positional accuracy <0.2MM
• Positioning- deviation from the reference point <0.5MM

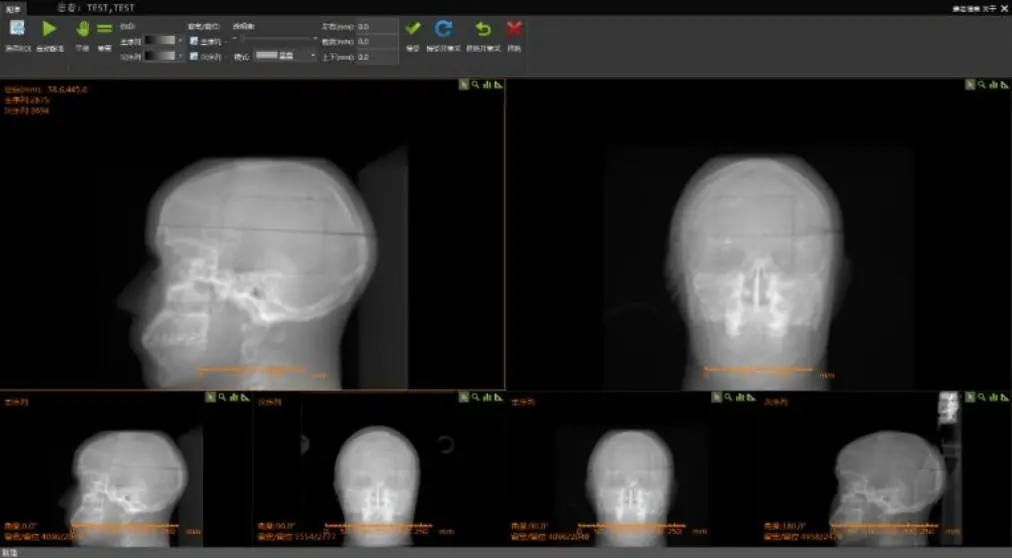

Integrated image guide

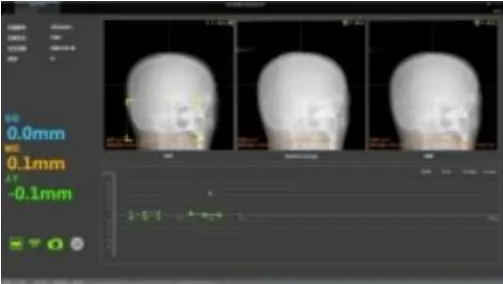

CybeRay's KV-CBCT integrated image guide ensures that the image position coincides with the treatment position, Through precise positioning verification, it is able to calibrate the displacement error caused by the varied body shape of patients or by other factors and to correct the positioning error on fractionated treatment, with positioning accuracy less than 0.5mm.

More accurate

3D real-time image guide

Integrated dose verification /guide system

Integrated EPlD tablet

Equipped with an integrated EPlD tablet at the opposite of the gamma systemhead, CybeRay is the first gamma radiotherapy equipment in the world that is capable of real-time portal filed verification and dose monitoring.

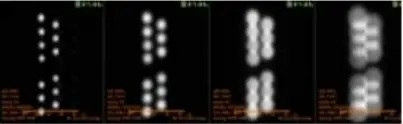

Portal filed verification

CybeRay realizes the real-time monitoring of the field of multi-source gamma ray for the first time, by locating a high-precision dose monitoring system on the opposite of the systemhead which is able to monitor the size of the collimator's radiation field in real time during the treatment or QA process, and thus to verify the accuracy of the radiation filed.

Dose verification and guide

CybeRay is also capable of monitoring and verifying the radiation dose. With international leading dose algorithm, CybeRay can access to the dose in treatment, providingreliable assurance for QA while makingit possible for dose guide.

More precise

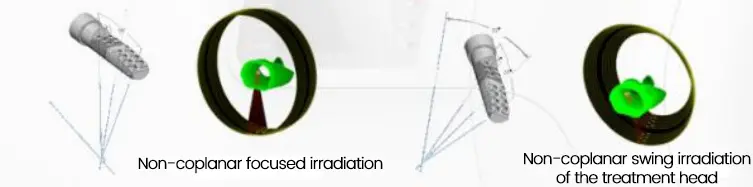

intelligent multi-arc stereotactic focused irradiation

The implementation of SBRT requires large angle non-coplanar irradiation to increase the radiation dose while minimizing the dose to the surrounding normal tissues to reduce clinical toxicity. CybeRay provides multi-source focused large angle non-coplanar beams with small  filedfor stereotactic radiotherapy, so that it is possible to achieve multiple focuses during the therapy, delivering more excellent dose distribution. While meeting the requirement for the target prescription dose, it can also greatly reduce the dose to the surrounding healthy tissues so as to mitigate side effects of the therapy, and provide conditions for increasing the dose to the target for the purpose of meeting clinical needs to the maximum extent.

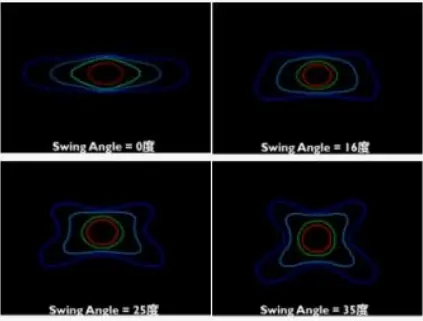

CybeRay is capable of selecting flexibly the full-arc therapy, half-arc therapy or local arc stretching therapy taking into consideration of the location and shape of a tumor and its relative position to the sensitive protective tissues based on the dose distribution characteristics formed by diferent angle ranges of rotating irradiation, , so as to produce the optimal therapeutic effect.

Case comparison

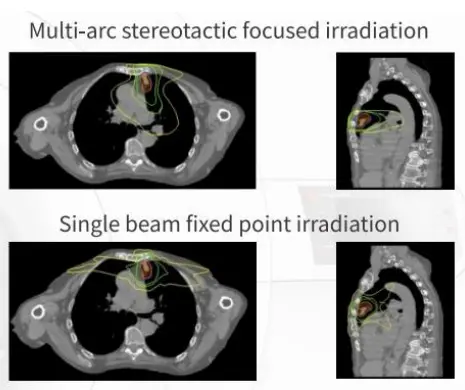

Lungs

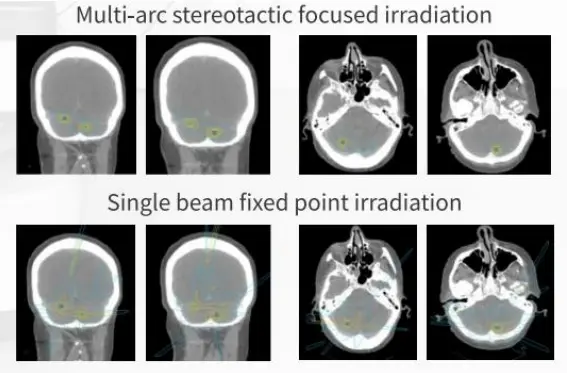

Brain
