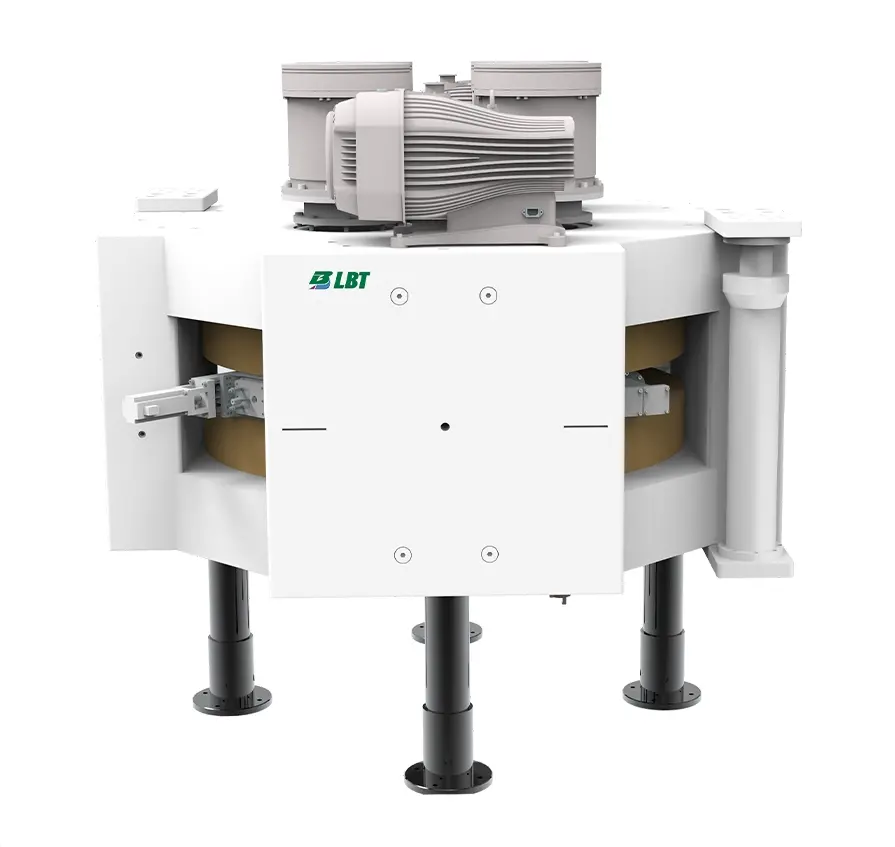

Model: LB-7SE
|
Size: 1760mm*1600mm*1400mm (L*W*H) | Model | LB-7SE | |
| Beam energy | 7MeV | ||
| Beam current | 50μA (100μA under development) | ||
| Yield | 800mCi (18F@2h) | ||
| Isotopes | 18F, 11C | ||
| Features | |||
| Intelligence | One-click isotope production | ||
| Integration | Integration of sythesis module and the cyclotron | ||
| Small footprint | High flexibility in site selection | ||

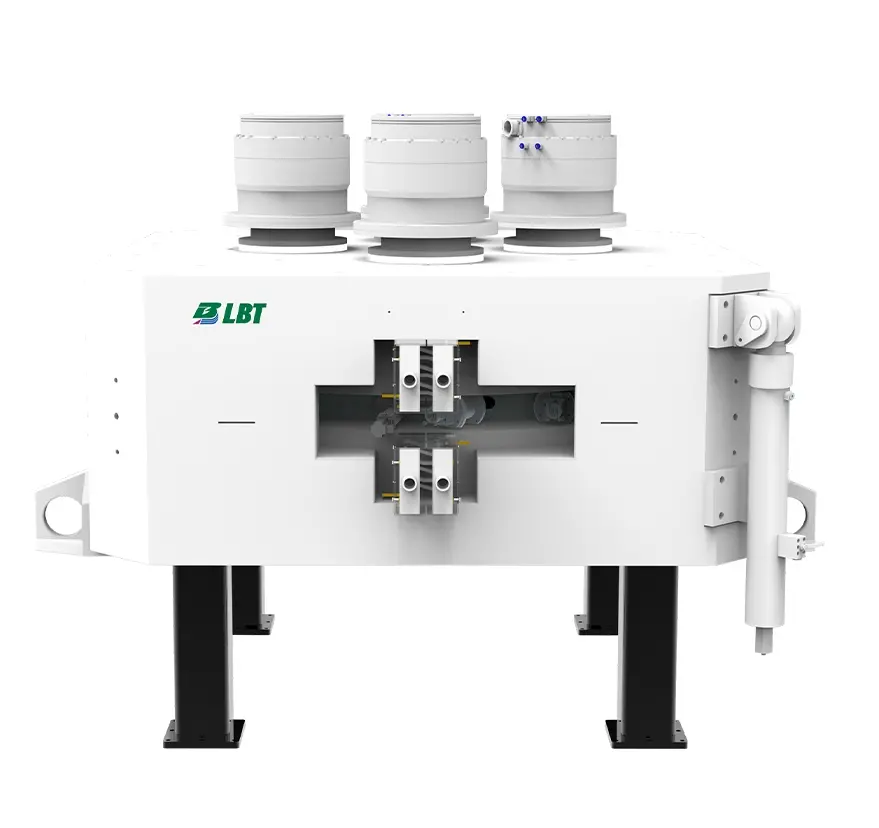

Model: LB-11MTS
| Model | LB-11MTS |
Size: 1710mm*1710mm*1870mm (L*W*H) | |
| Beam energy | 11MeV | ||
| Beam current | 100μA | ||
| Yield | 4.0Ci (18F@2h) | ||
| Isotopes | 18F, 11C, 13N, 68Ga (liquid/solid), 64Cu, 89Zr, etc | ||
| Features | |||
| Intelligence | One-click isotope production | ||
| Integration | Upgradable from 4 targets to 8 targets, solid targets available | ||
| Small footprint | Satisfy both clinical requirements and scientific research | ||
Model: LB-20
|
Size: 2000mm*1900mm*1890mm (L*W*H) | Model | LB-20 | |
| Beam energy | 14-20MeV | ||
| Beam current | 100μA (180μA under development) | ||
| Yield | 10.0Ci (18F@2h) | ||
| Isotopes | 18F, 11C, 13N, 68Ga (liquid/solid), 89Zr, 64Cu, 99mTc, 124I, 44Sc, etc | ||
| Features | |||
| Isotope factory | A variety of isotopes | ||
| High productivity | Satisfy the needs of private use and distribution | ||
| Wide engergy span | Two energies available from 14MeV to 20MeV | ||
Synthesis & Dispensing
 |  |  |

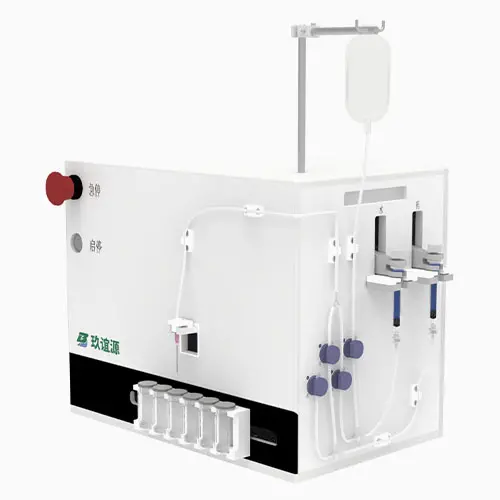

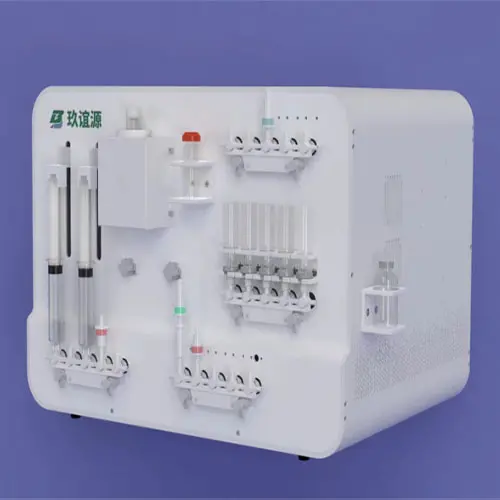

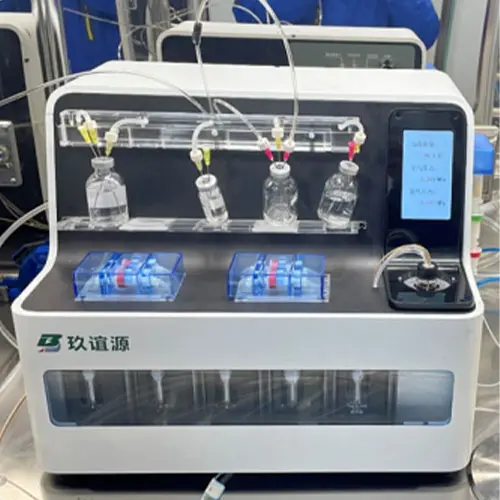

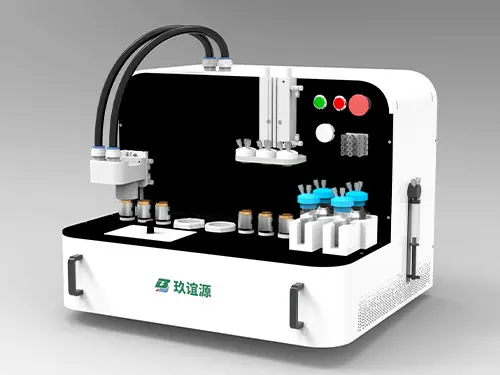

| 18F-FDG Synthesizer | Multi-functional Synthesizer | Automatic Dispenser |
| To synthesize 18F and FDG | To synthesize various kinds of isotopes and chemicals | To automatically dispense radiopharmaceuticals |

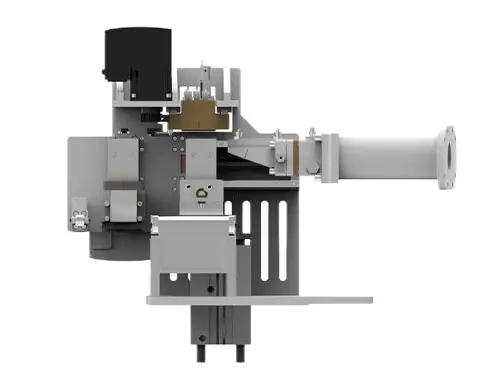

Target Systems
|

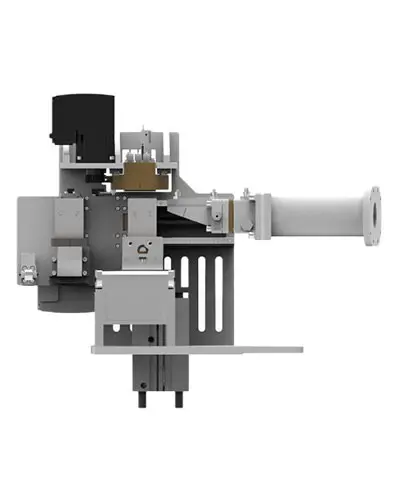

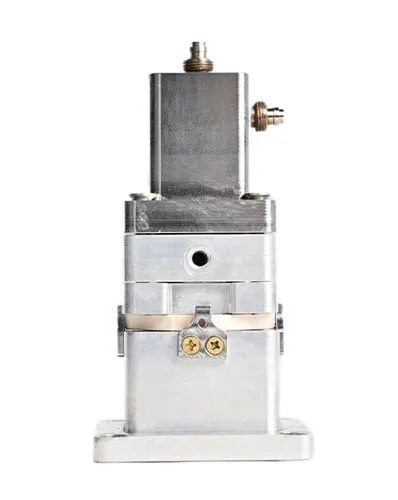

Liquid target |

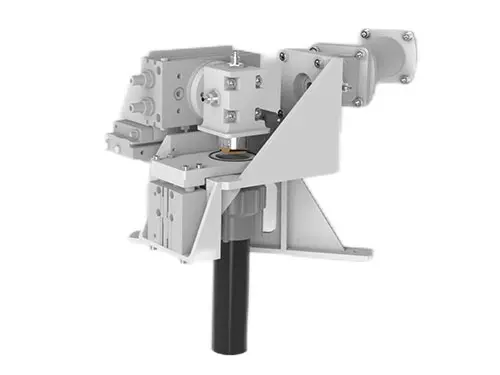

Solid target |

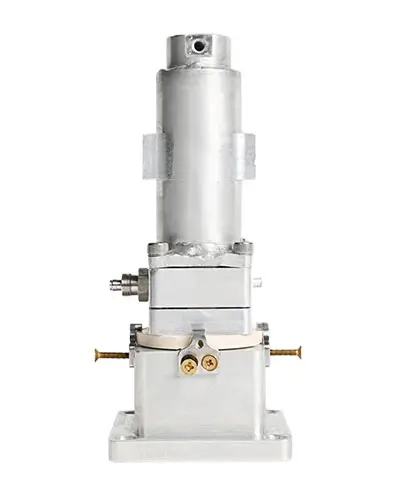

Gas target |
IsotopeX Lab
|
|
|
|

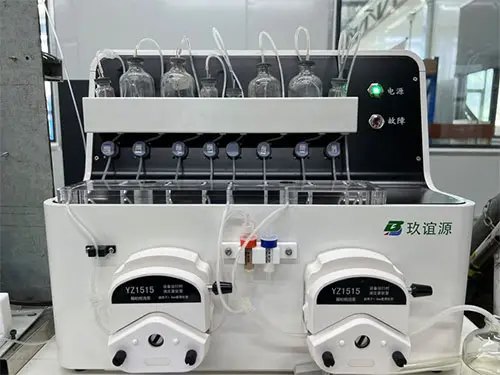

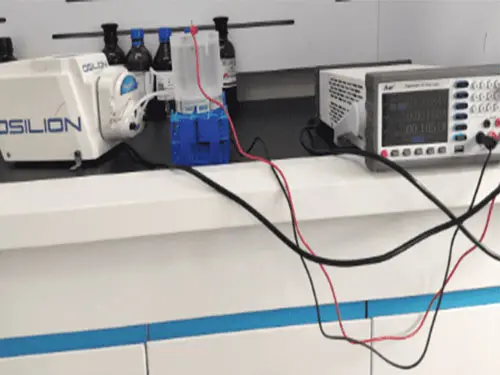

| JG - Ⅰ | JG - Ⅱ | Electroplating Module |
|
|
|
|

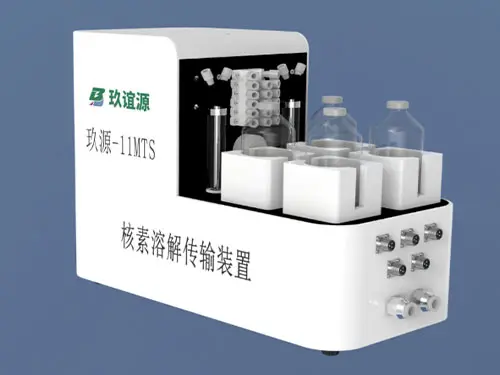

| Dissolving Module （JG -Ⅰ) | Dissolving Module (JG -Ⅱ) | Purification Module |
|

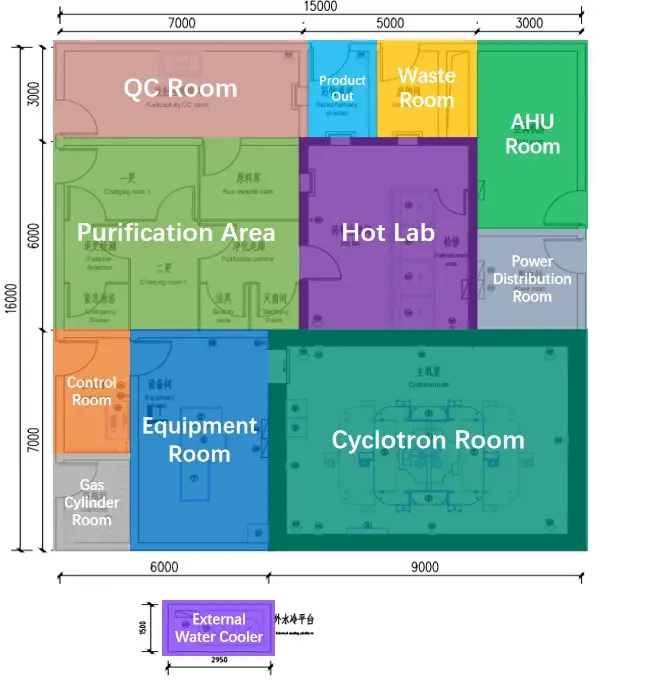

Layout
Total area for LB-7SE: ≥ 220㎡ (self-shielding solution) ≥270㎡ (bunker solution)
Total area for LB-11MTS: ≥240㎡ (self-shielding solution) ≥290㎡ (bunker solution)
Total area for LB-20: ≥280㎡ (self-shielding solution) ≥330㎡ (bunker solution)
|
Product detailed link website: https://www.long-beam.com/
